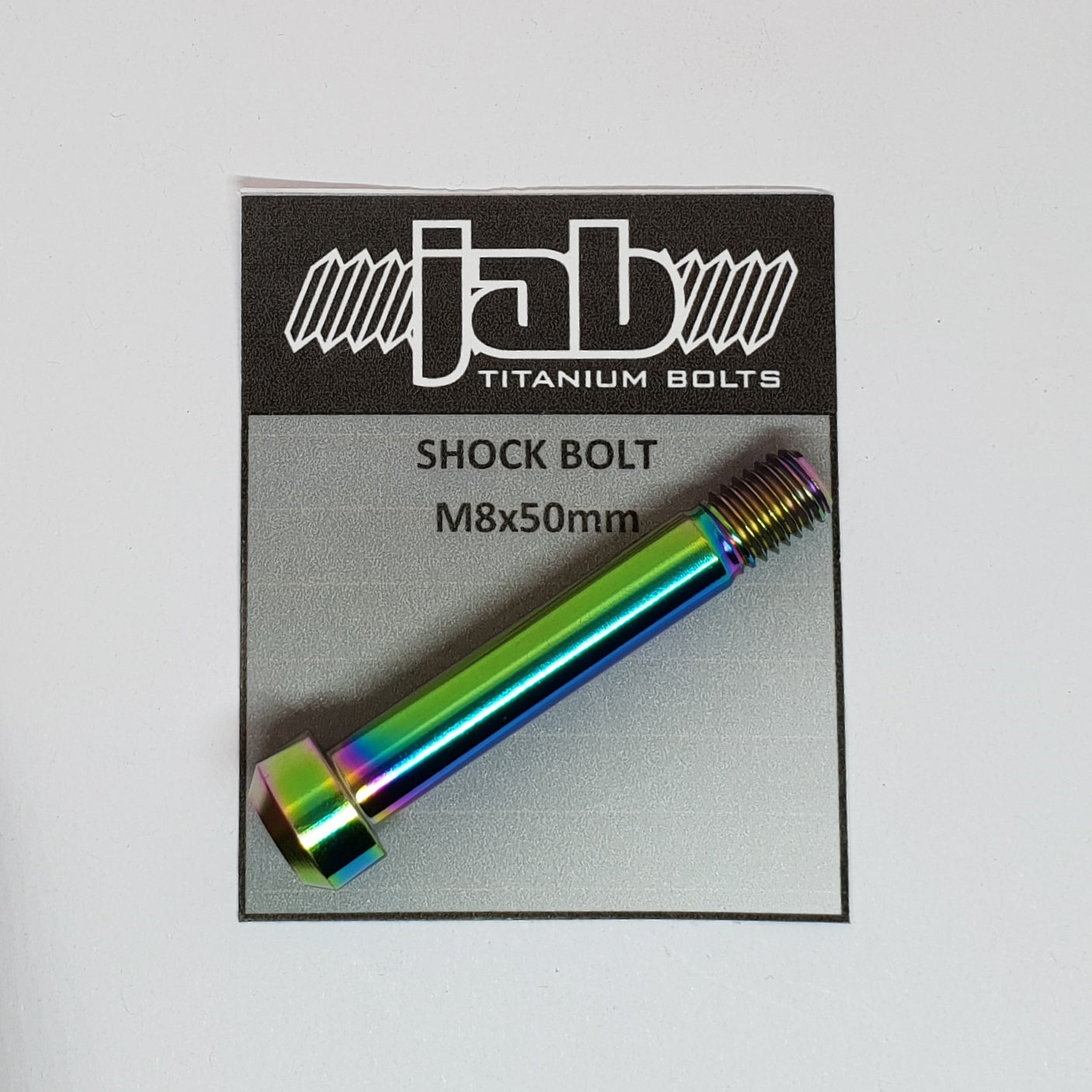

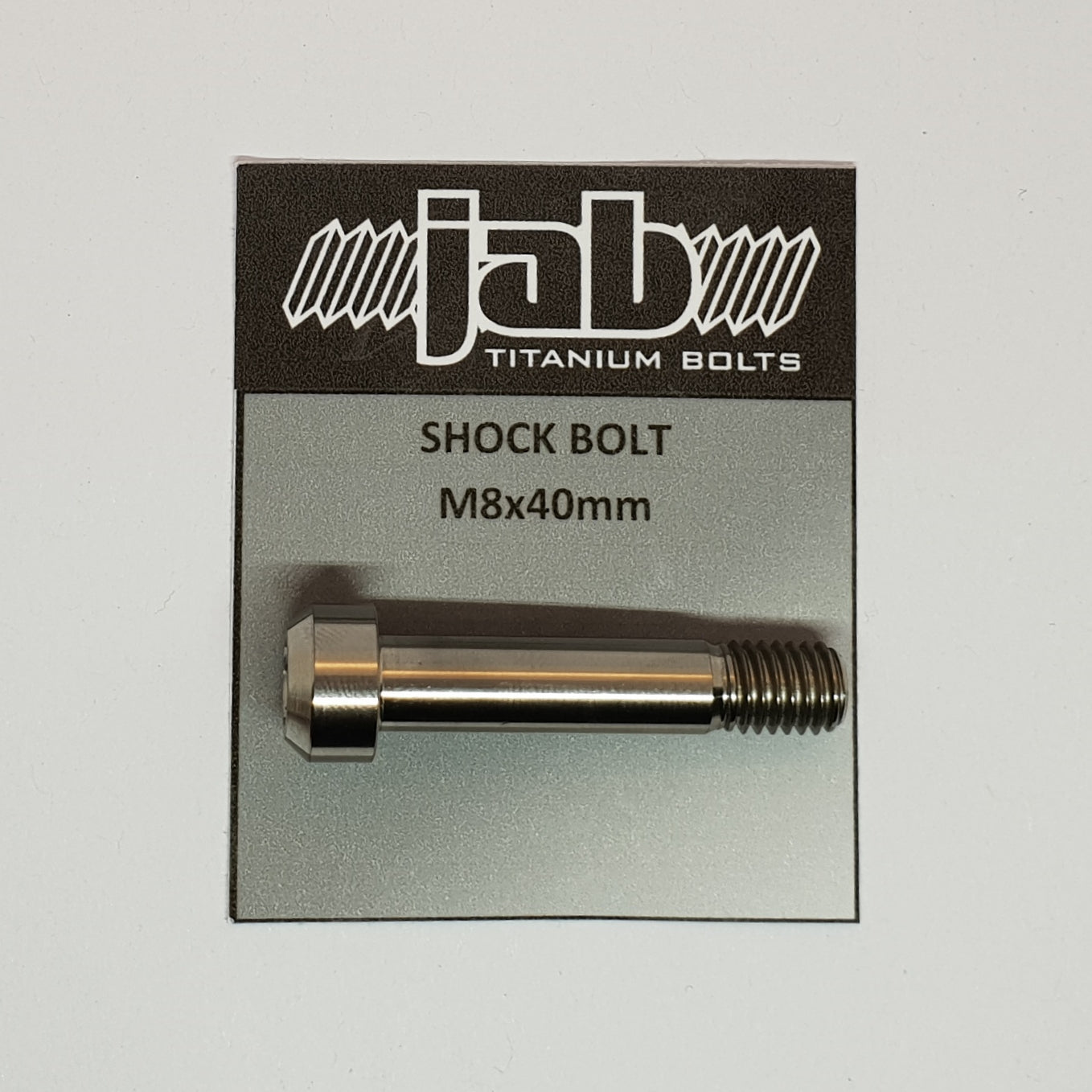

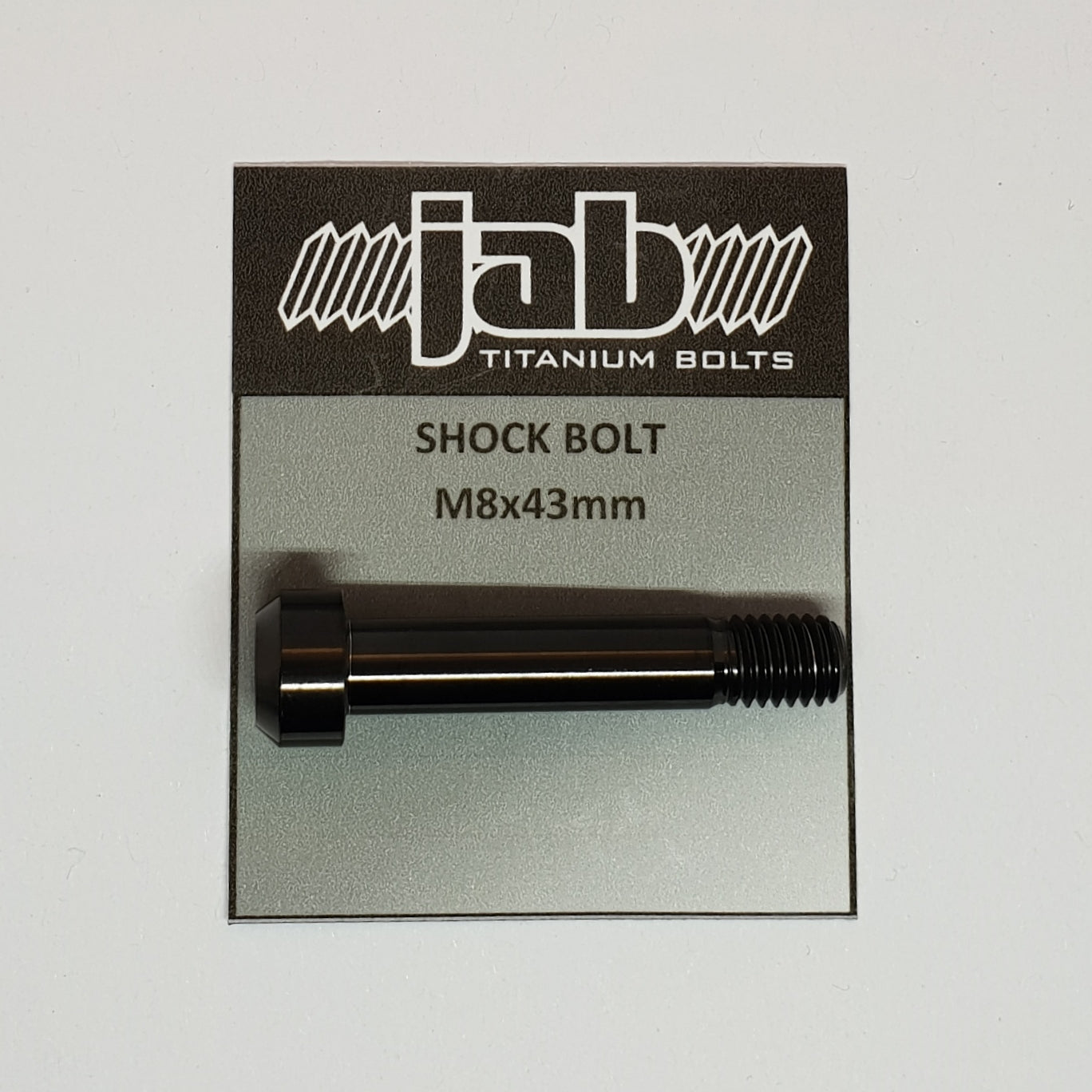

Our Titanium Shock Bolts are made from Grade 5 Titanium, they suit some Santa Cruz frames but also plenty of other makes and models.
Please check your bike before ordering or contact us if you're unsure.
You will save approximately 10 grams per OEM bolt
Bolt head width is 13.00mm
Bolt head height is 7.50mm
Please note: Apply copper based bolt prep to the threads and standard waterproof grease to shaft.
Thread pitch is 1.25mm for all bolts
For the below Santa Cruz models you will need the following sizes. (There are others not listed)
(1 x 35mm Bolt and 1 x 43mm Bolt)
- 5010 V3
- Bronson/Roubion V3
- Nomad V4
- Hightower/Maverick V2
- Megatower V1
(2 x 35mm Bolts)
- Blur V4
- Hightower LT V1
- Majority of pre-2017 Style Santa Cruz frames. (Please check your bike before ordering)
(1 x 40mm Bolt and 1 x 43mm Bolt)
- Tallboy/Joplin V4
- 5010/Furtado V4
- Nomad V5
(1 x 35mm Bolt and 1 x 50mm Bolt)
- Heckler E-Bike
- Heckler E-Bike MX
(1 x 43mm Bolt and 1 x 50mm Bolt)
- Bullit MX V3
(2 x 45mm Bolts)
- Nomad V6
- Megatower V2
- Heckler E-Bike V9
- Bronson V4
(1 x 43mm Bolt and 1 x 45mm Bolt)
- Tallboy v5
- Hightower V3
- 5010 V5
(1 x 45mm Bolt)
- Banshee Titan V3 and V3.2
Don't see your frame listed? Contact us and we can look into adding them in the future.
