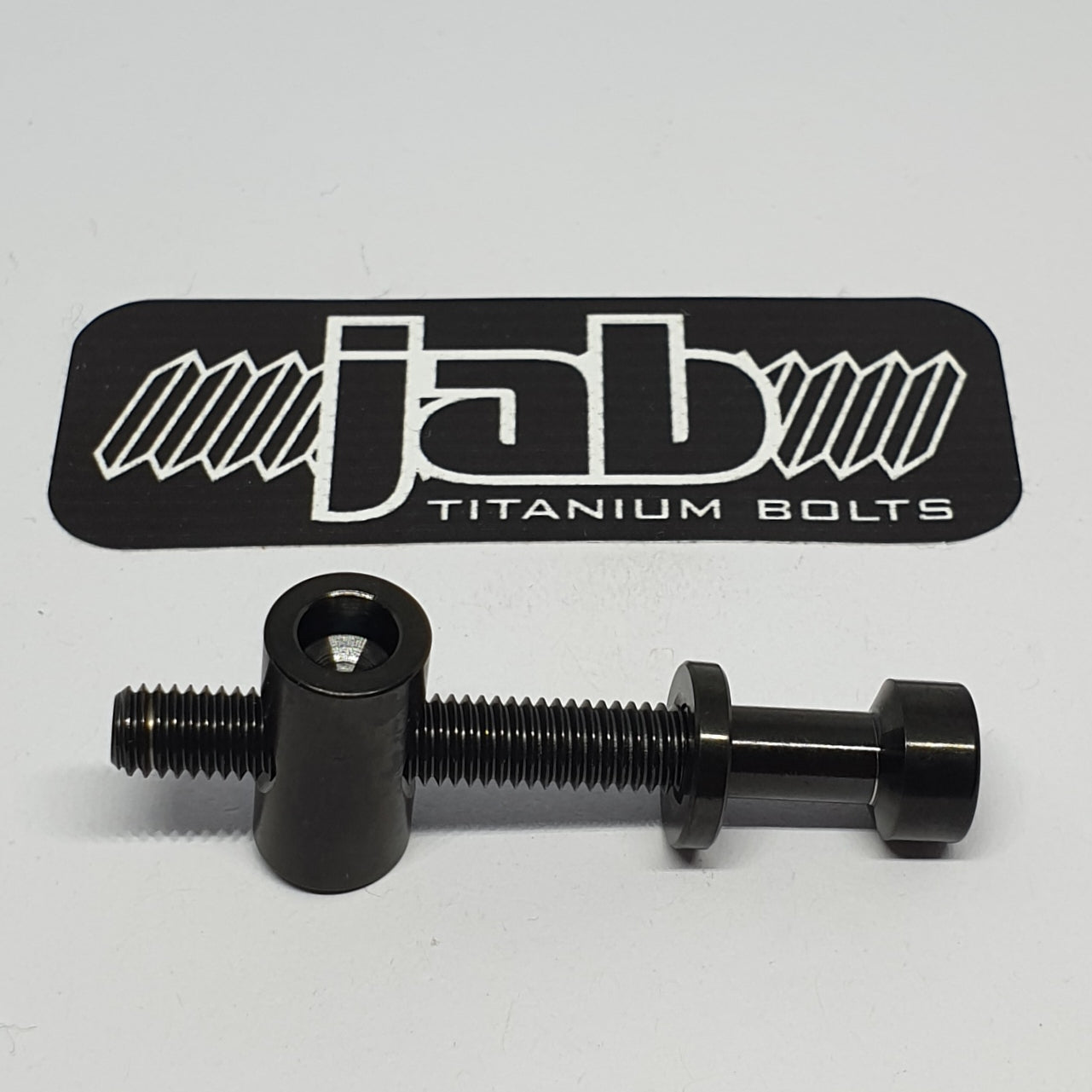

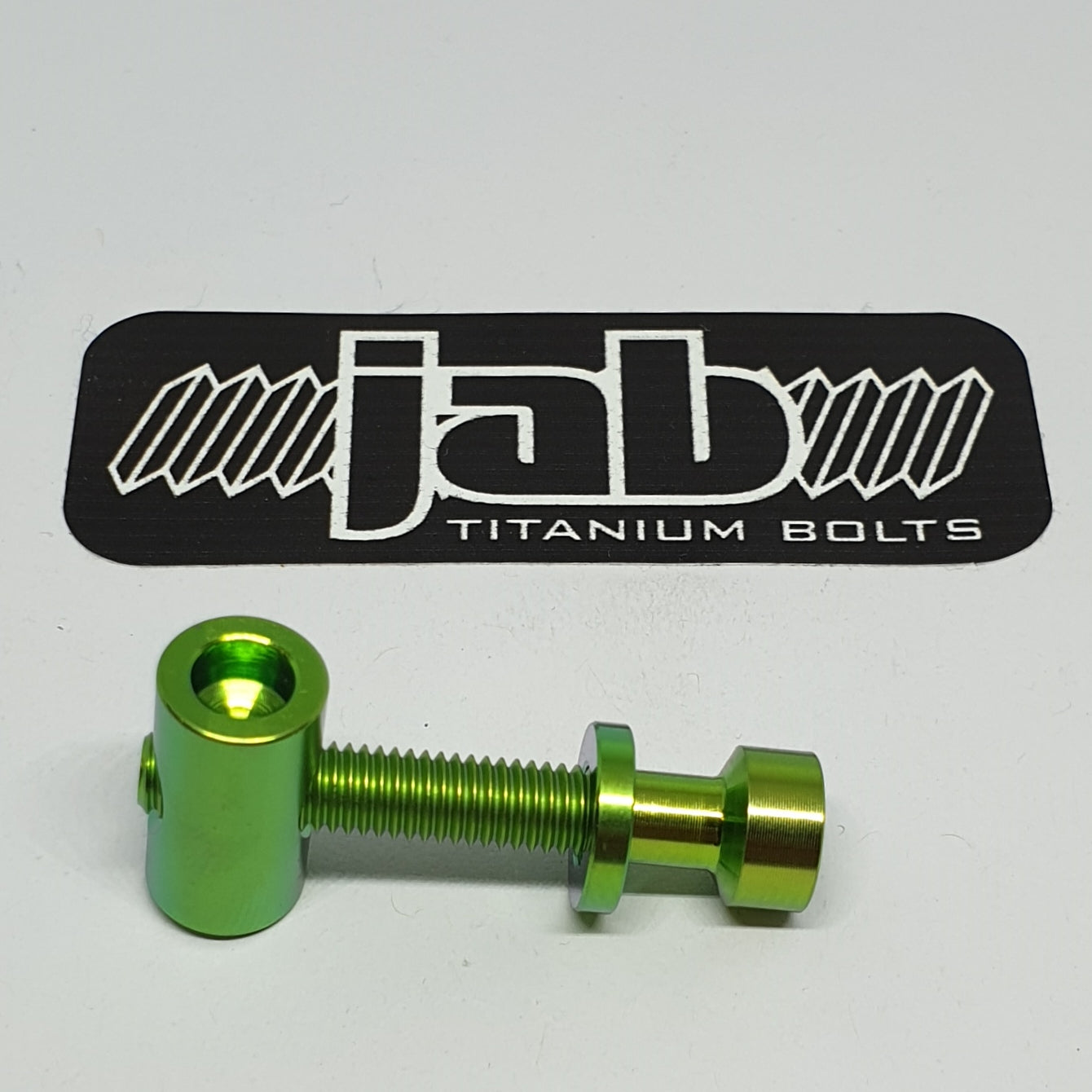

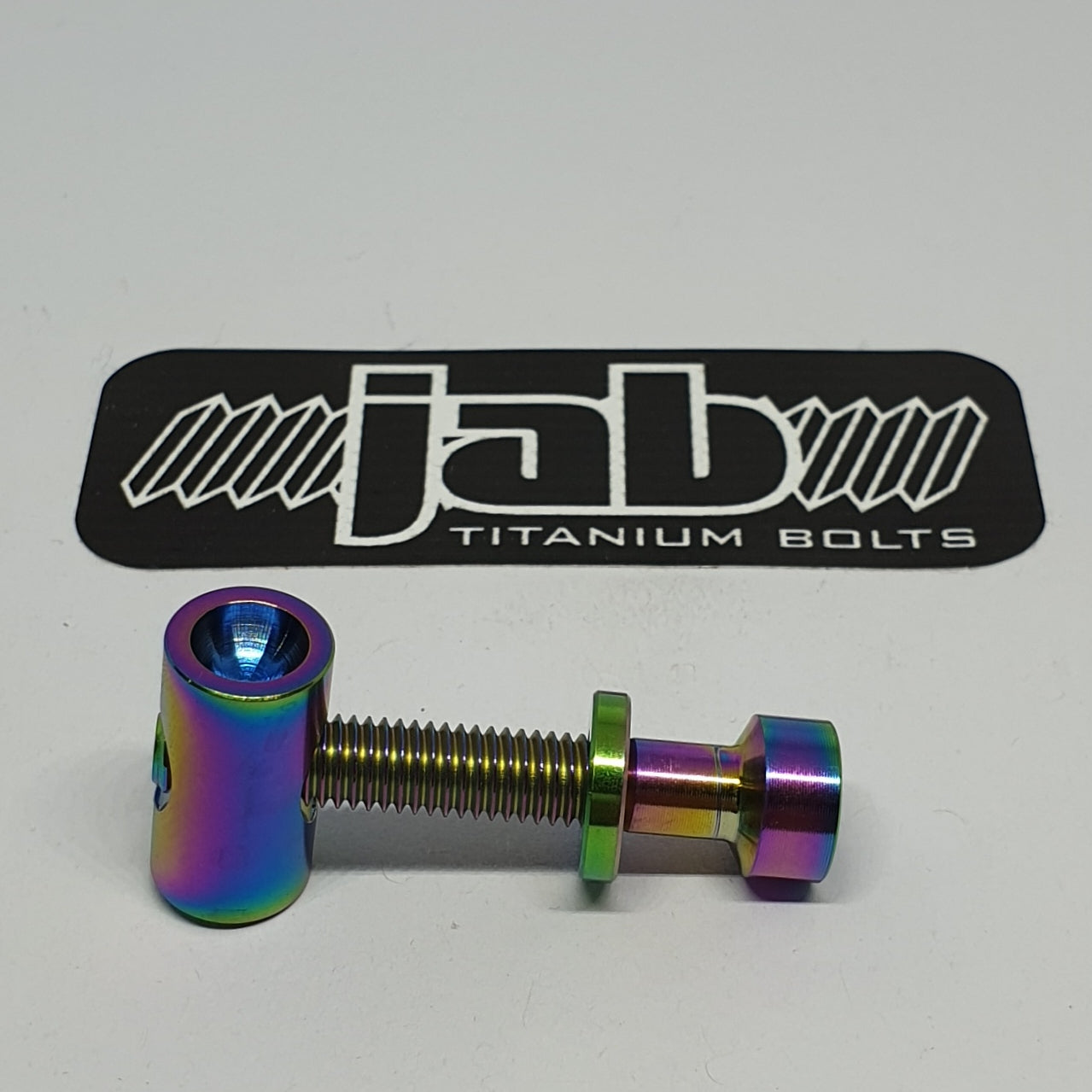

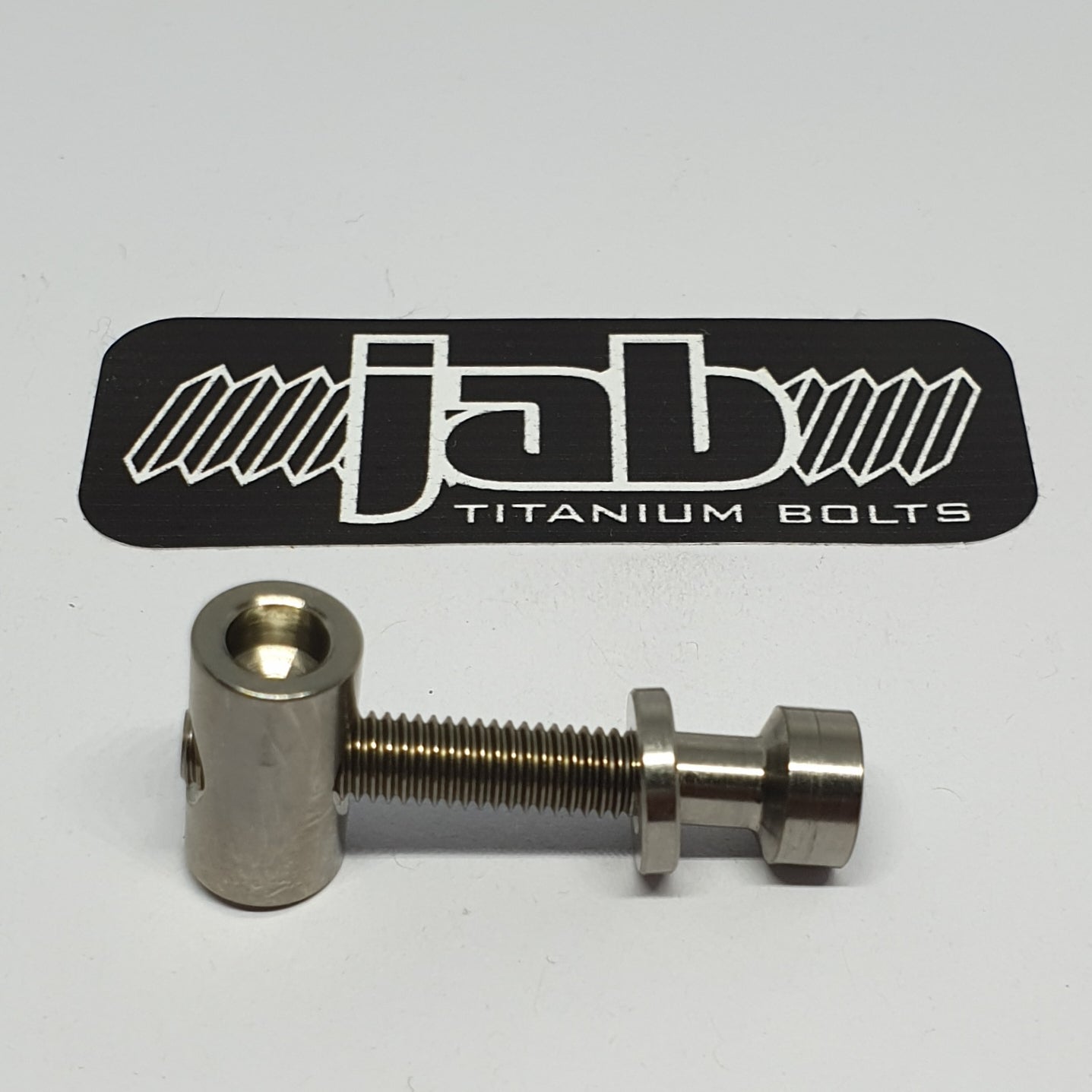

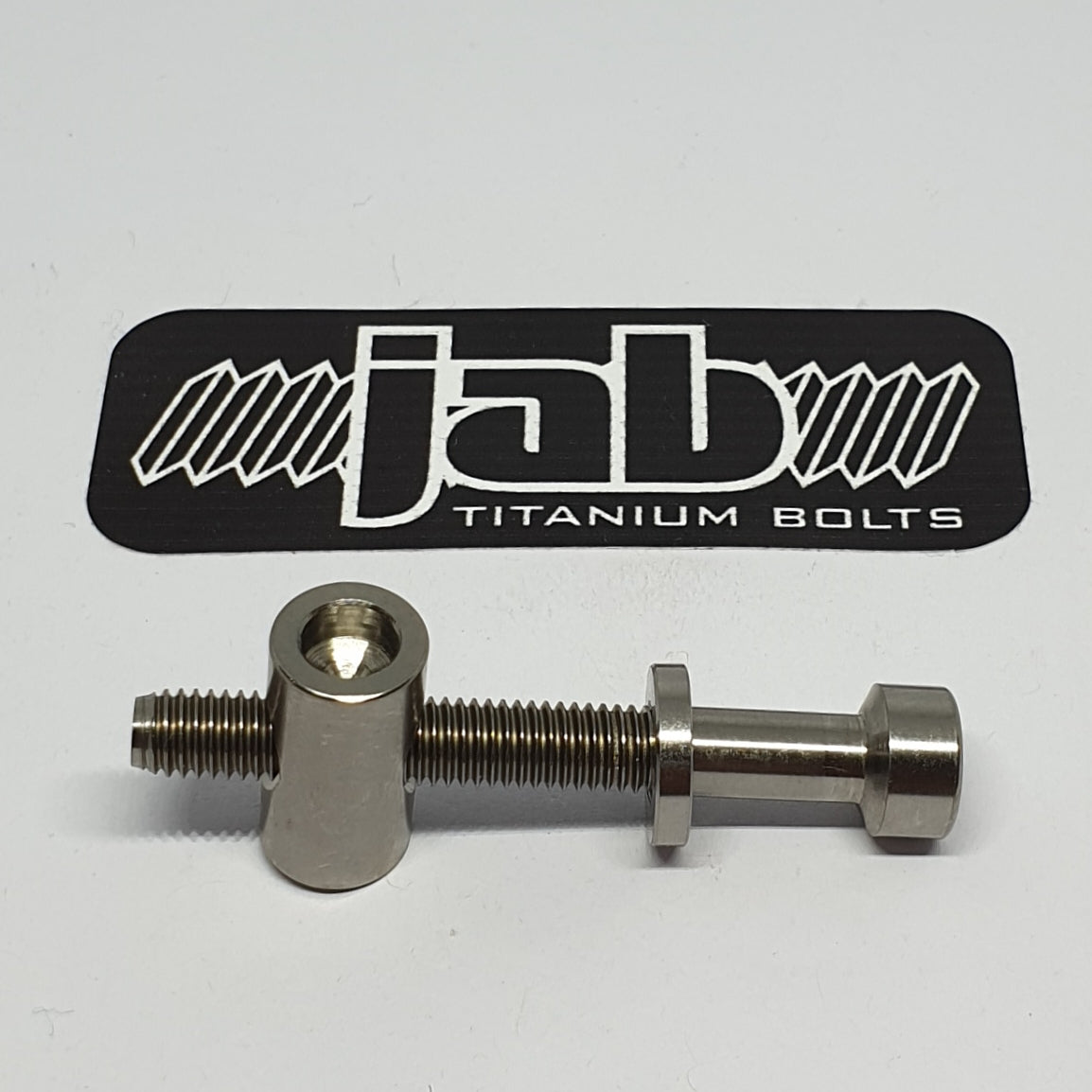

We have two lengths available for our Titanium Seat Clamp Bolt Kit.
Most commonly suitable for Thomson seat posts and compatible with other seat post and dropper posts.
Currently available in two lengths - M5x30mm and M5x40mm
Each kit consists of:
- 1x Bolt in your chosen length
- 1x Concave washer
- 1x Barrel nut
Dimensions of each part of the kit are below:
- Bolt head width - 8.50m
- Bolt head height - 4.00mm (excluding tapered head)
- Concave washer height - 1.75mm
- Concave washer width - 9.90mm
- Barrel nut width -16.00mm
- Barrel nut diameter - 8.50mm
Check manufacturers compatibility and instructions for correct torque settings.
We suggest standard bicycle grease for the thread and small amount under the bolt head/washer - No need for copper grease with Titanium on Titanium.
